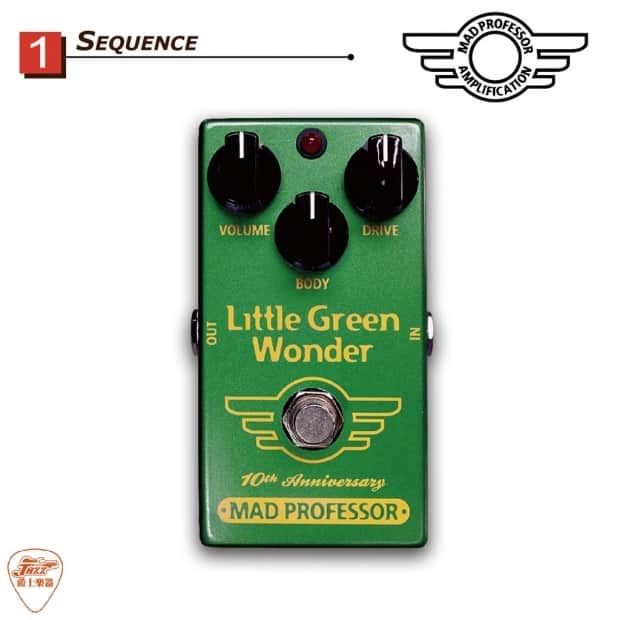

10TH ANNIVERSARY LITTLE GREEN WONDER 限量100顆!!
It’s a low compression, high headroom overdrive with high output.

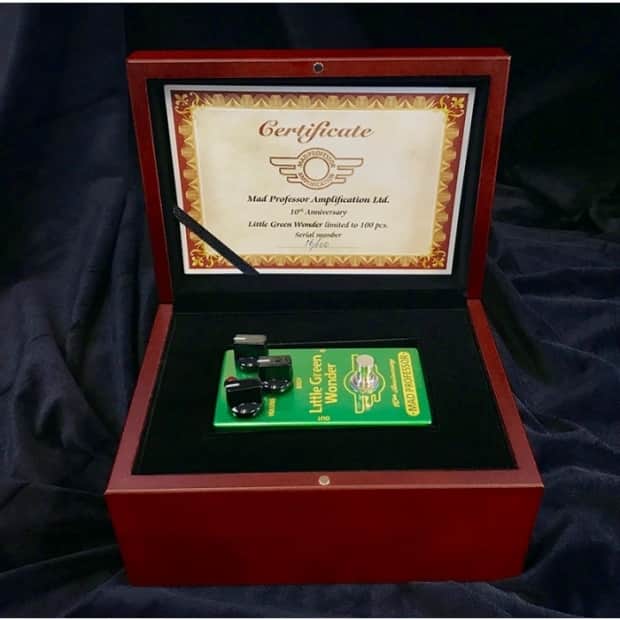

Mad Professor Amplification is celebrating the 10th anniversary with a special edition of the first ever produced pedal under the Mad Professor name: Little Green Wonder. This limited to 100 pc anniversary model has a slight twist compared to the original and comes in a beautiful wooden box with a certificate. The journey of success will continue!
Premium quality classic blues/rock pedal that works very well with complex overdriven amp sound. It’s a low compression, high headroom overdrive with high output, and it has a Body knob for adjusting low-mid content and treble.
The LGW was made to be a stackable overdrive that could go anywhere in the pedal chain and the compression normally associated with this type of circuit is reduced same as several distortion mechanisms. This pedal will work very well with amps and other pedals that have a lot of complexity or compression, a situation that not all pedals work well. LGW makes a great building block to sound yet it works standalone and especially with humbuckers where normally this type of circuit would not work satisfactory, much due to bass loss and sometimes separated sounds (where transients feedthrough and a cloud of distortion follows beneath.
Body control gives access to medium mid hump at the center position and allows treble boost at CW rotation and low-mid/treble boost a CCW position and so unit also can provide distortion albeit a smooth type. LGW can be used as an overdrive to already distorting amplifiers or pedals downstream, as well as function as a filter when feeding with fuzz pedals that may be rough on some amplifiers and can also be used as a light overdrive for just breaking up sounds.
CONTROLS
DRIVE: to adjust distortion, sustain and harmonic content. A good starting point for this control is a bit below center (eleven o’clock).
BODY: sets the frequency range of distortion. Turn CCW for more bass and low-mids with slight treble boost. Turn CW to get just a slight treble increase.
VOLUME: sets the balance between processed signal and non-processed.
ELECTRICAL SPECIFICATIONS
Z in at 1kHz: app. 500K
Pout 1kHz in 50k: app. 0uW70 RMS
Max load: app. 10K
Max output: 3V peak
Max current consumption: 4mA at 9V
Upper freq. -3dB: app. 10KHz
Max gain at 1KHz: app. 58 dB
Max input signal: 3V peak
Supply Voltage Range: 7V5-18V
Complete bypass (true bypass)
