Schecter USA CUSTOM SHOP

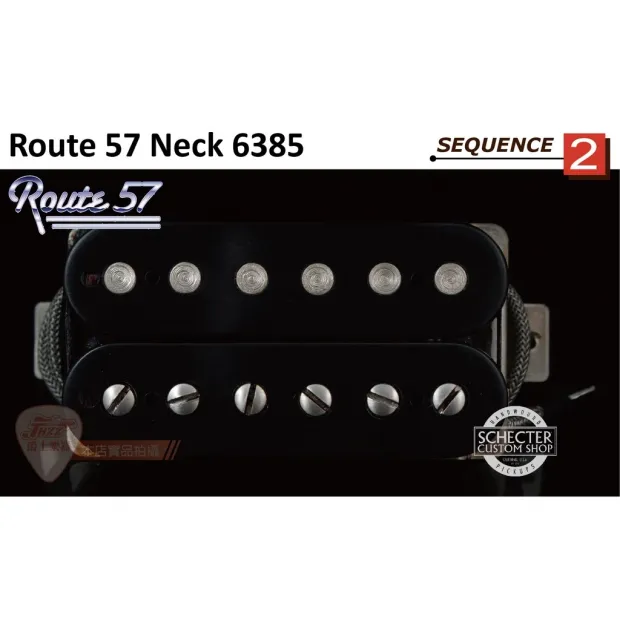

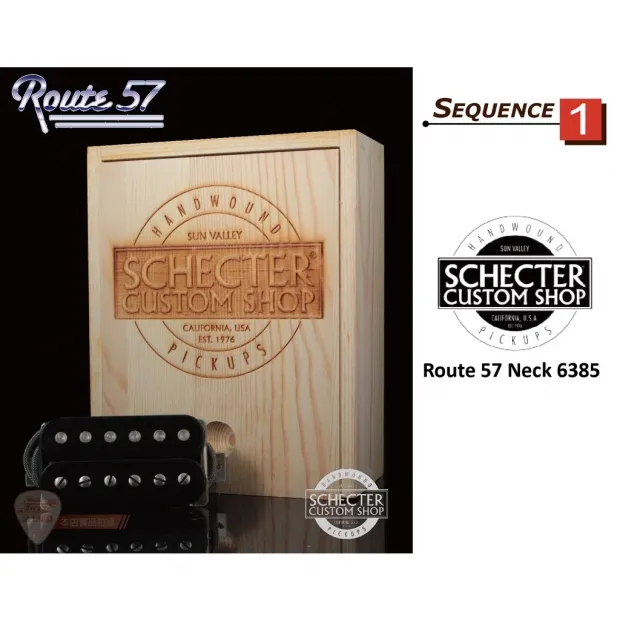

Route 57 Neck 電吉他 琴頸端 拾音器
The 42 AWG plain enamel magnet wire, rough cast long alnico V magnet, and pure German silver long leg baseplate keep the recipe on track, while our proprietary 5-40 philister head screws, high carbon .187â slugs and pole piece keeper contribute to the traditional sound and magnetic field expected from a pickup with such a rich history. A cloth single conductor with a braided shield hookup lead and 49mm spacing on the bridge and neck complete the package. Each piece is lightly weathered to perfection and available with either a raw German silver cover or uncovered.
Spacing
49mm Universal Spacing
Wiring/Design
2 Conductor braided push-back shielded lead
Baseplate

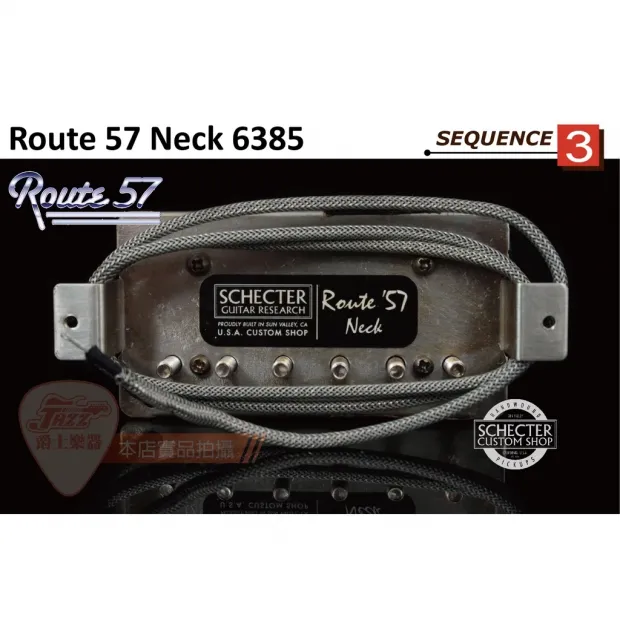

Solid German silver long leg baseplate
Pole Pieces
6 High Carbon Steel .1875" slugs / 6 Philister head pole pieces
Magnet
NOS Rough Cast Alnico V Bar Magnet
Output at full power
7.5k ohms
