2021 Limited Edition IBANEZ JCSR2021
限量款 頂級 五弦 電貝斯
SPECS
neck type
Atlas-5 HP5pc Wenge/Purpleheart neck
top/back/body
Buckeye Burl & Blue Resin topSwamp Ash body
fretboard
Wenge fretboardMother of Pearl & Abalone oval inlay
fret
Medium frets
number of frets
24
bridge
MR5S bridge
string space
16.5mm
neck pickup
Bartolini® Custom neck pickupPassive
bridge pickup
Bartolini® Custom bridge pickupPassive
equaliser
Ibanez Custom Electronics 3-band EQ w/ EQ bypass switch (passive tone control on treble pot) & 3-way Mid frequency switch
factory tuning
1G,2D,3A,4E,5B
strings
D'Addario® EXL165-5
string gauge
.045/.065/.085/.105/.130
nut
Graph Tech® BLACK TUSQ XL® nut
hardware color
Gold
NECK DIMENSIONS
Scale :
864mm
a : Width
45mm at NUT
b : Width
67mm at 24F
c : Thickness
19.5mm at 1F
d : Thickness
23mm at 12F
Radius :
305mmR
CONTROLS
JCSR2021's control diagram
FREQUENCY RESPONSE
JCSR2021's EQ curve diagram
OTHER FEATURES
Gotoh® machine heads
Hardshell case included
Buckeye Burl & Blue Resin top / Swamp Ash body
The stunning Buckeye Burl with Resin top imbues this guitar with an exotic appearance and the Swamp Ash body delivers a pleasant brightness and rich sustain.
Buckeye Burl & Blue Resin top / Swamp Ash body
Atlas HP 5pc Wenge/Walnut neck
The Atlas HP 5pc Wenge/Walnut neck provides a well-balanced note attack and tone with rich sustain.
Atlas HP 5pc Wenge/Walnut neck
Wenge fretboard/Medium frets
The Wenge has a strong presence of mid low range, and provides very tight and clear sound. Medium sized frets enhance the accuracy of your notes.
Wenge fretboard/Medium frets

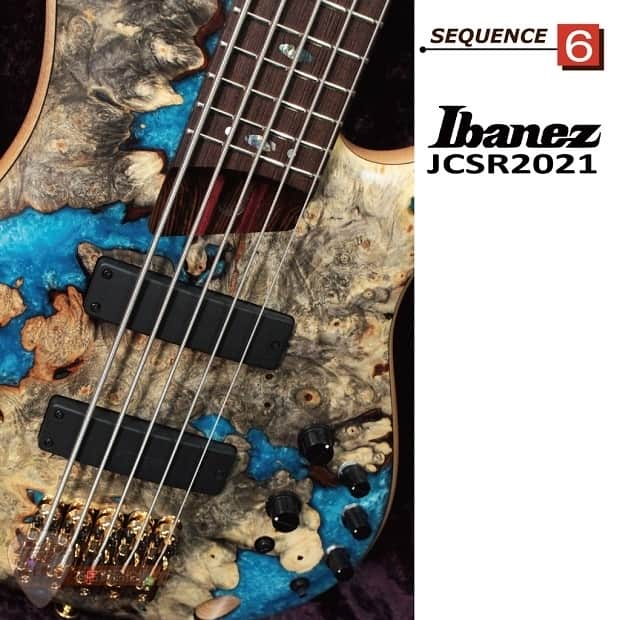

Bartolini® Custom BH2 pickups
Bartolini® Custom pickups are arched to mirror the radius of the fretboard. This positions each string equally distant from the pickup.
Bartolini® Custom BH2 pickups
Ibanez Custom Electronics 3-band EQ w/EQ bypass switch & 3-way Mid frequency switch
The Ibanez Custom Electronics 3-band EQ is our latest refinement on the concept of simple, straightforward, no-nonsense EQ control. The Boost and Cut for the Mid Control are each centered on slightly different frequencies, an innovation that delivers a preset range of the most favorable bass tones.
The EQ bypass control offers precision tonal adjustments, including a switch to choose passive-only operation. When the EQ bypass is activated, the treble tone control knob becomes the global tone control for the passive circuit.
The 3-way Mid frequency switch allow players to change the mid-tone between 250, 450, and 700 Hz.
Ibanez Custom Electronics 3-band EQ w/EQ bypass switch & 3-way Mid frequency switch
Gotoh® machine heads
Gotoh® machine heads provide super precision, smooth feel, and minimal back lush.
Gotoh® machine heads
MR5S bridge
The MR5S bridge has adjustable saddles for variable string spacing by +/- 1.5mm, answering every bassist’s specific string spacing needs.
MR5S bridge
